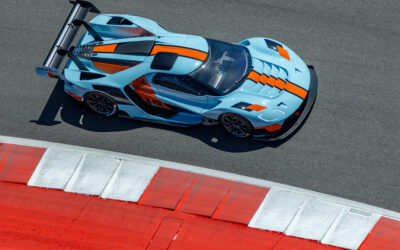

Ford GT Mk IV

No stone has been left unturned in the relentless pursuit of outright performance

Features

Top down view of vehicle diagram

195 mph

Top speed

800+ hp

On 93 octane fuel

3g +

Lateral acceleration

Full specification

  • Engine:

    Third generation Ecoboost 3.8 litre V6 twin-turbo using bespoke forged crank, titanium rods, billet pistons, bigger turbochargers, and significantly increased charge cooler capacity than the GT Mk II and Ford GT road car

  • Power:

    800+ hp on 93 octane fuel – an increase of 100 hp over the GT Mk II and 150 hp above the Ford GT

  • Suspension:

    All new double wishbone, pushrod actuated torsion bars developed around 18” wheels which accommodate the highest performance motorsport slick tyres

  • Dampers:

    Multimatic Adaptive Spool Valve (ASV) provides a constantly variable control of overall vehicle transient modes, with the capability of choosing from a number of different levels of response. It offers the driver the ability to change the handling characteristic of the car from within the cockpit – replaces passive adjustable DSSV dampers on GT Mk II and selectable DSSV on the Ford GT

  • Chassis:

    Carbon fibre chassis shared with the GT Mk II and Ford GT with a unique upper roll cage

  • Wheelbase:

    2760mm – an increase of 50mm over GT Mk II/Ford GT

  • Dry weight:

    1265kg – 100 kg less than GT Mk II and 245 kg less than Ford GT

  • Gearbox:

    Xtrac 6-speed, dog engagement racing gearbox utilsing E-shift actuation and a ZF 4-plate carbon/carbon dry clutch operated by a MEGA-line E-Clutch control - replaces the dual-clutch gearbox used on GT Mk II and Ford GT

  • Brakes:

    Carbon/carbon 6-piston (F), 4-piston (R) calipers – replaces carbon/ceramic configuration used on GT Mk II / Ford GT

  • Wheels:

    12.5” x 18” (F) 13” x 18” (R) replaces 19” on GT Mk II and 20” on Ford GT

  • Tyres:

    Michelin Pilot Sport slick 30/680-18 (F) 31/710-18 (R)

  • Aerodynamics:

    2400 lbs downforce at 150mph – 600 lbs more than GT Mk II

  • Top Speed:

    195 mph

  • Lateral acceleration:

    3g +

Track day introduction

Ford Bronco driving through the desert

The Mk IV is offered inclusive of a track day introduction, complete with data engineers, vehicle technicians, Ford Performance drivers for instruction (if required), full catering and technical presentations at one of a number of world-renowned circuits. Post-event maintenance will also be provided as part of the complimentary package.

News & events

Common questions

No, the GT Mk IV is a track only vehicle and therefore does not have a title and cannot be registered.
